18" 2.4 GHz Omni-Directional WiFi Antenna - 10db Gain
Model 254-WLW
Digital Antenna’s rugged, most popular 18” antenna design is
now available in 2.4 GHz WiFi frequencies. Its powerful 10dB
gain and omni-directional signal pattern offers excellent
performance in a compact design. Maximum distance is achieved
with an outstanding VSWR of less than 1.5:1 across the entire
frequency band (2.2 – 2.5 GHz). This universal antenna
withstands harsh environments making it ideal for land and
marine applications, including commercial sites, boats, RVs,
homes and offices.

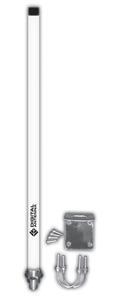

Digital Antenna’s 254-WLW includes stainless steel L-bracket
and U-bolts for mounting to a wall or pole. The antenna features
an N type female connector at the base. For ease of
installation, Digital Antenna offers
factory terminated
cable assemblies in lengths from 10 to 100 feet.
Made in the USA; assembled, tested and tuned by hand for
maximum performance, quality and durability.
- WiFi, Point to Point, Point to Multipoint
- Powerful brass radiators
- Soldered connections
- High gloss urethane finish
- VSWR <1.5:1 across entire band
- Mounting hardware included
- Five year warranty
| 254-WLW |
| 2-3 GHz |
| <1.5: 1 = 2.22 – 2.56 GHz |
| 18" L x 1" OD |
| Omni-directional |
| Outdoor |
| 10dB |
| Type N female |
| White, UV stable poly-urethane coating |
| Bracket & U-bolts for wall or pole (included) |
| 200W |
| 50 ohms |
| Vertical |
| DC ground |
|
